Asus ROG Maximus Z690 Hero EVA(ROG x Evangelion) Z690 ATX Gaming Motherboard,DDR5,PCIe® 5.0,Wi-Fi 6E,5xM.2,USB 3.2 Gen 2x2 Front-Panel Connector with Quick Charge 4+ Support, 2xThunderbolt™ 4
4.8 (84 items)
Limited Time SaleUS$754.38 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 228913336 | Release Date | 2026/05/31 | List Price | US$502.92 | Model Number | 228913336 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

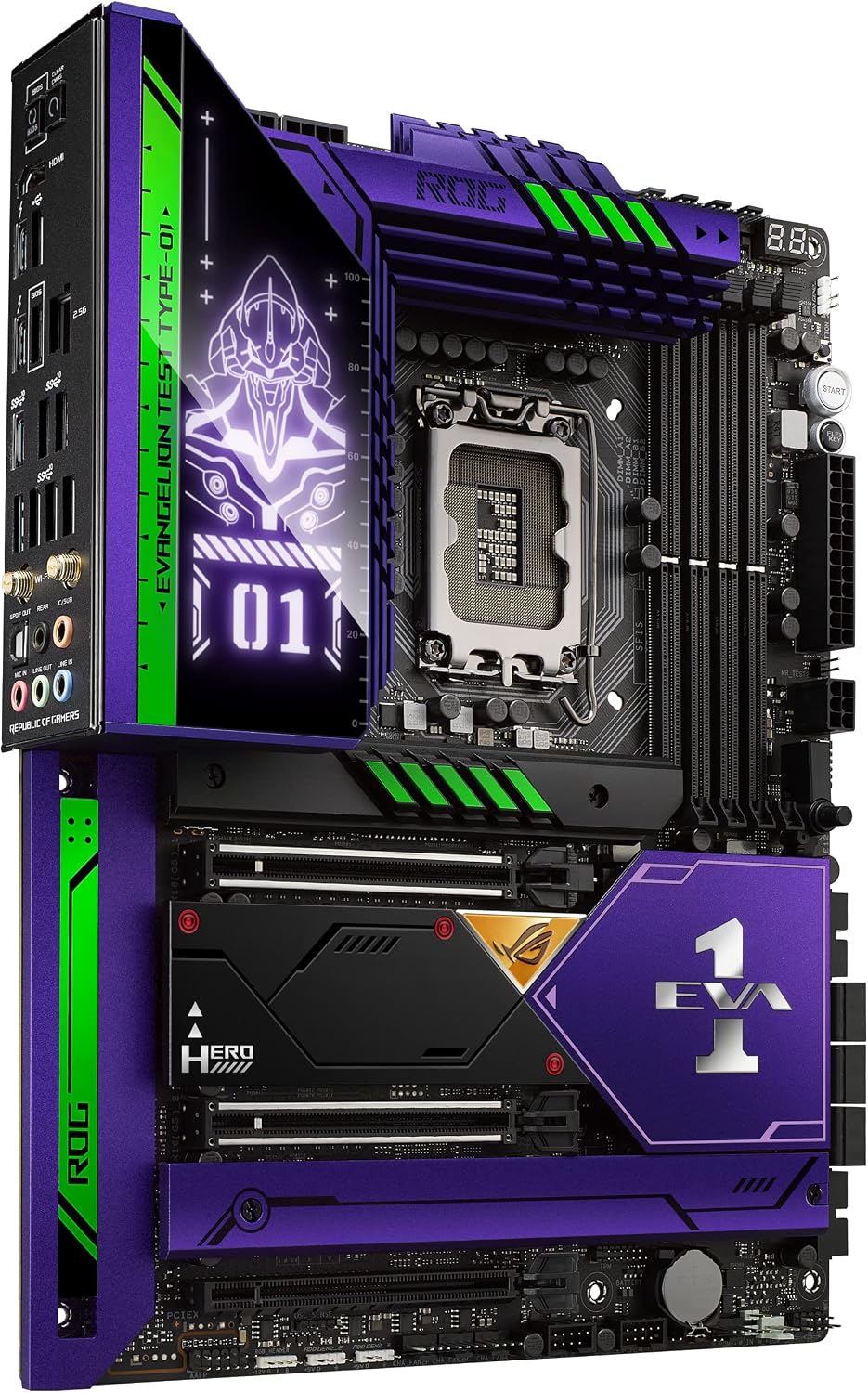

The Asus ROG Maximus Z690 Hero EVA Edition is covered in the classic purple and green of the EVA-01 and is similarly well-equipped. Robust cooling and power delivery are poised to push the latest 12th Gen Intel® Core ™ processors to the max. An A.T. Field design around the CPU socket and polymo-lighting on the I/O cover that switches between EVA-01 normal and berserk modes is a further aesthetic treat.
- Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors. 11. Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86.
- EVANGELION aesthetics: Co-branded with EVANGELION to feature the unique design of the EVA-01 displayed on the PCB, heatsink, nameplate and packaging.
- Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration.

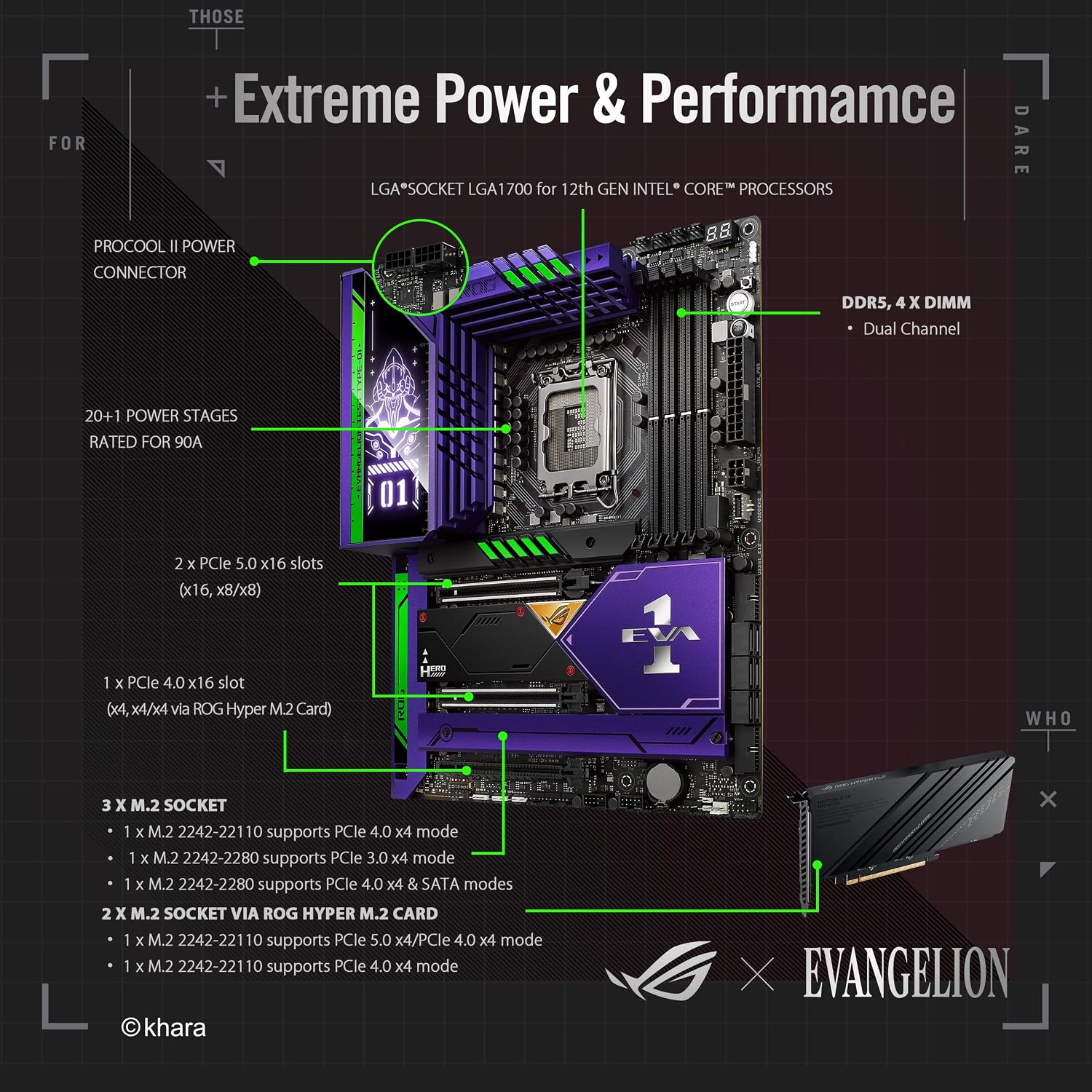

- Robust Power Solution: 20+1 teamed power stages rated for 90 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors.
- Optimized Thermal Design: VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, triple M.2 heatsinks and dual with embedded backplates, plus ROG Water-Cooling Zone and ROG Hyper M.2 card with heatsinks.
- High Performance Networking: Onboard Wi-Fi 6E, Intel 2.5Gb Ethernet, and ASUS LANGuard.
- Fastest Gaming Connectivity: PCIe 5.0, dual Gen 4 M.2 onboard, ROG Hyper M.2 card with Gen 5 M.2 support, USB 3.2 Gen 2x2 front-panel connector, Thunderbolt 4 (USB Type-C port).
- Industry Leading Audio: ROG SupremeFX ALC4082 codec with ESS ES9018Q2C DAC for pinpoint positioning and dynamics.
- Unmatched Personalization: I/O cover with Polymo lighting, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers.
- DIY Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release , BIOS FlashBack, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Hyper M.2 card and ROG graphics card holder
| UPC | 195553762458 |
|---|---|
| ASIN | B0B1PG1C8D |
| Brand | ASUS |
| USB 20 | 2 |
| Platform | Windows 10 |
| CPU Model | Pentium |
| Model Name | ROG MAXIMUS Z690 HERO EVA |
| Item Weight | 1.27 Pounds |
| Chipset Type | Intel Z690 |
| Manufacturer | ASUS |
| Model Number | ROG MAXIMUS Z690 HERO EVA |
| Item Type Name | Motherboard |
| Mfr Part Number | ROG MAXIMUS Z690 HERO EVA |
| Number of Ports | 40 |
| Total Usb Ports | 20 |
| Processor Socket | LGA 1700 |
| Total PCIe Ports | 4 |
| Total SATA Ports | 6 |
| Compatible Devices | Personal Computer |
| Memory Clock Speed | 4400 MHz |
| SPDIF Connector Type | Optical |
| Warranty Description | 3 Years |
| Compatible Processors | intel celeron |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 4 |
| Graphics Card Interface | PCI Express |
| Memory Storage Capacity | 128 GB |
| Ram Memory Maximum Size | 128 GB |
| Number of Ethernet Ports | 2 |
| Item Dimensions L x W x H | 9.6"L x 2.2"W x 12"H |
| Main Power Connector Type | 24-Pin |
| Total Number of HDMI Ports | 1 |
| System Bus Standard Supported | SATA 3 |
