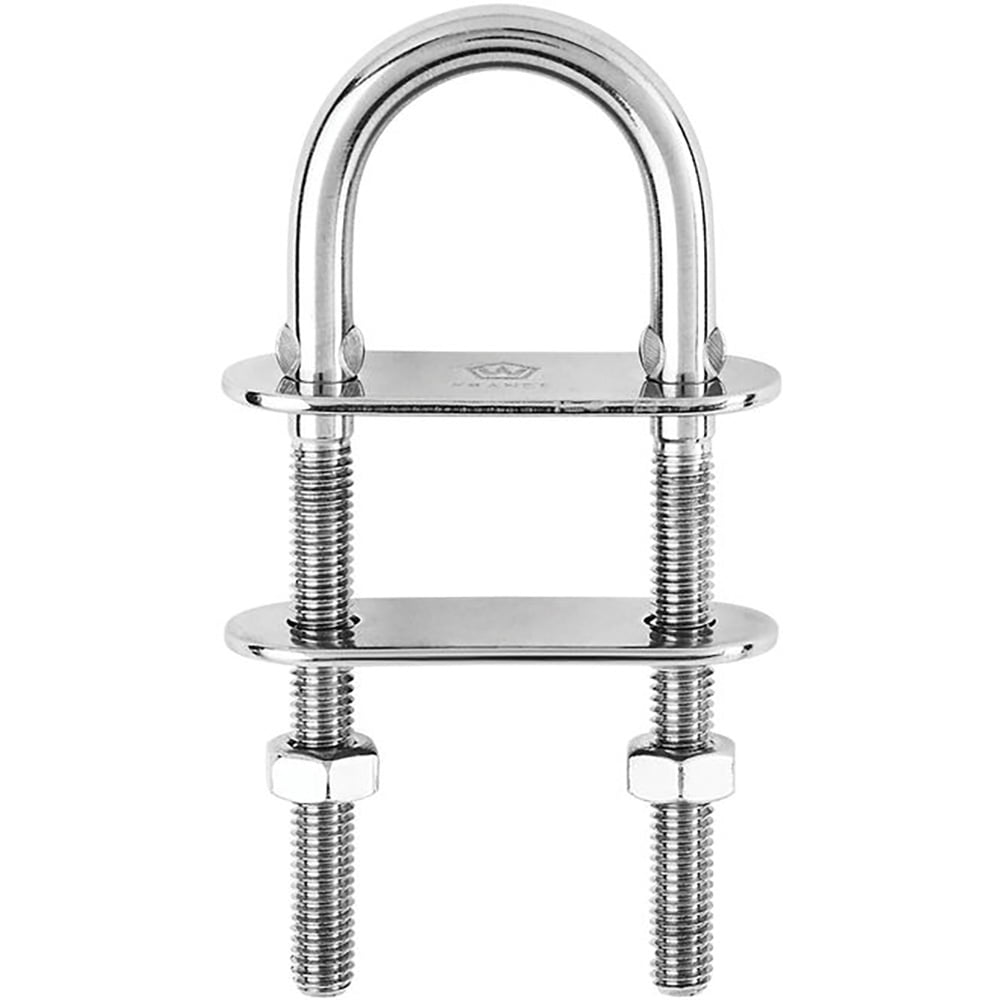

Wichard U-Bolt Pad Eye - 4mm Diameter - 5/32" [6511W]

<p></p><p><strong>U-Bolt Pad Eye - 4mm Diameter - 5/32"</strong></p><p><strong>Features:</strong></p><ul><li>Fully drop forged product with high-quality stainless steel</li><li>Outstanding working and breaking loads</li><li>For any kind of fastening applications (shrouds, lifelines, blocks...)</li><li>Delivered with bolts and counter-plate</li><li>Max tightening torque: 2.3 Nm</li></ul><p><strong>Applications:</strong></p><ul><li>Various fastening applications: shrouds, lifelines, blocks…</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials: 316L stainless steel grade</li><li>Working load: (lb) 1050 / (kg) 480&nbsp;</li><li>Breaking load: (lb) 2200 / (kg) 1000&nbsp;</li><li>Weight: (lb) 0.049 / (g) 22&nbsp;</li></ul><p><strong>Dimensions:</strong></p><ul><li>A: (inch) 15/16" / (mm) 24&nbsp;</li><li>B: (inch) 53/64" / (mm) 21&nbsp;</li><li>C: (inch) 1 1/16" / (mm) 27&nbsp;</li><li>D diameter: (inch) 5/32" / (mm) 4&nbsp;</li><li>Length: (inch) 1 31/32" / (mm) 50&nbsp;</li></ul><p><strong>Caption:</strong></p><ul><li>Working Load (WL): For nautical applications</li><li>Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5</li></ul><p>*Sold as an Individual</p> <p></p><p><b>Specifications:</b></p><ul><li>Box Dimensions: 1"H x 3"W x 6"L WT: 0.1 lbs</li><li>UPC: 768536027167</li></ul><br><a href="https://productimageserver.com/literature/quickGuide/97684QG.pdf">Quick Guide (pdf)</a>

• U-Bolt Pad Eye - 4mm Diameter - 5/32"Features:
• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 2.3 NmApplications:
• Various fastening applications: shrouds, lifelines, blocks…Specifications:
• Materials: 316L stainless steel grade
• Working load: (lb) 1050 / (kg) 480
• Breaking load: (lb) 2200 / (kg) 1000

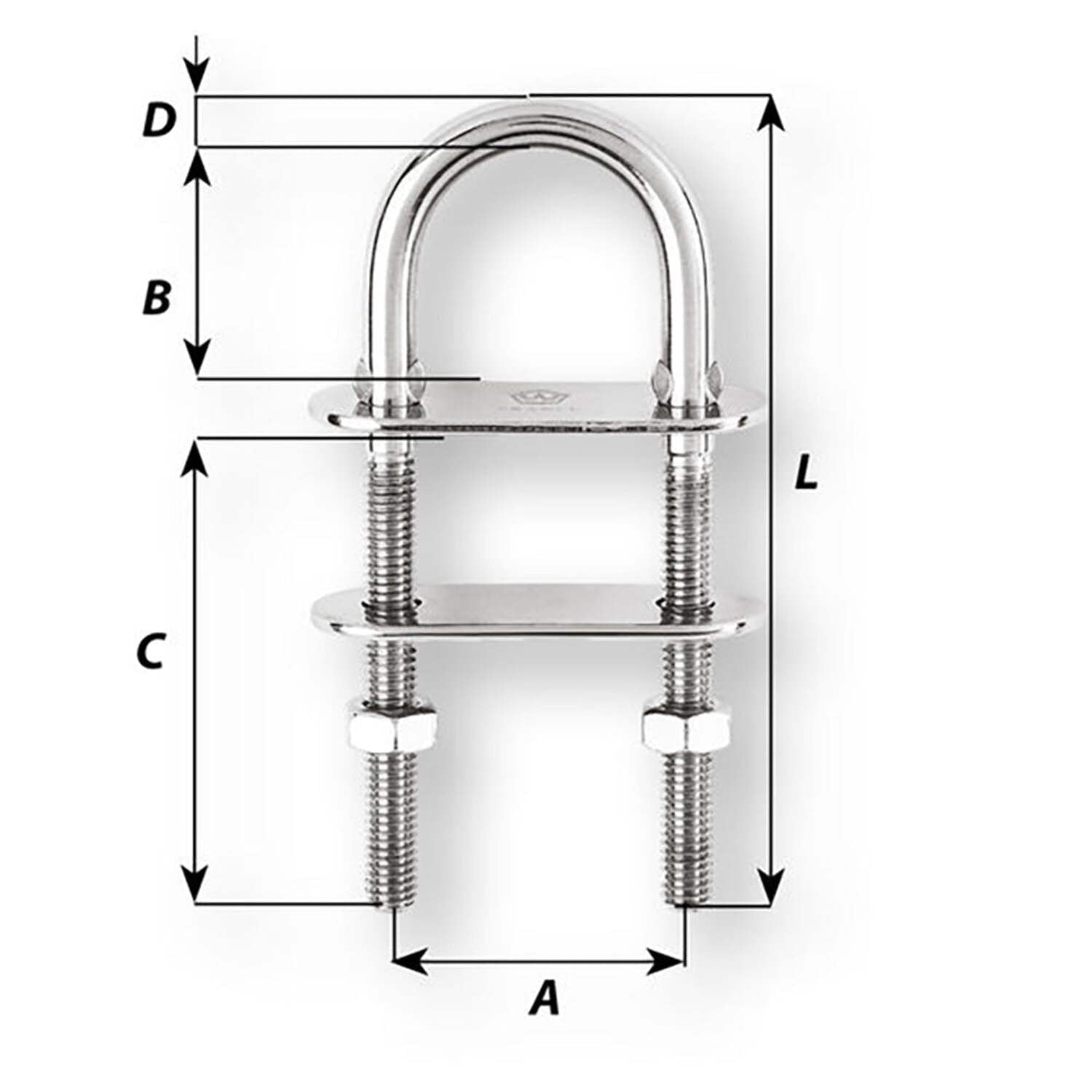

• Weight: (lb) 0.049 / (g) 22 Dimensions:
• A: (inch) 15/16" / (mm) 24
• B: (inch) 53/64" / (mm) 21
• C: (inch) 1 1/16" / (mm) 27
• D diameter: (inch) 5/32" / (mm) 4
• Length: (inch) 1 31/32" / (mm) 50 Caption:
• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5*Sold as an Individual Specifications:
• Box Dimensions: 1"H x 3"W x 6"L WT: 0.1 lbs
• UPC: 768536027167Quick Guide (pdf)
